Retaining Walls: What is Global Stability?

ENGINEERING-DESIGN
By Joseph Kowalski, P.E.
Mar 7, 2011 - 7:27:51 AM

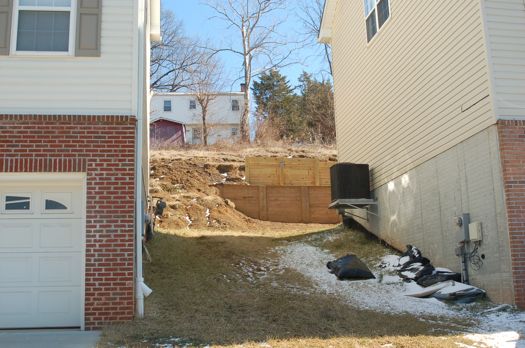

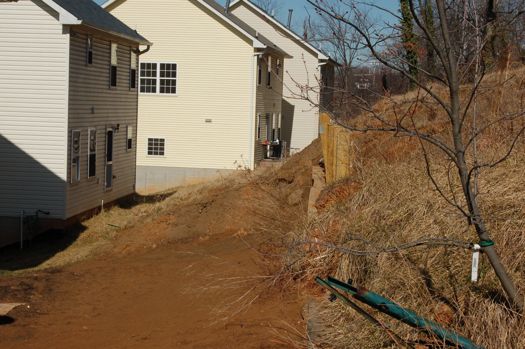

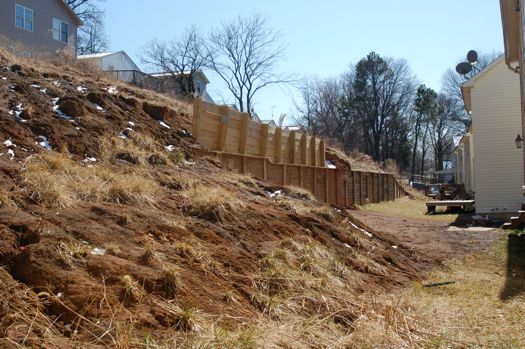

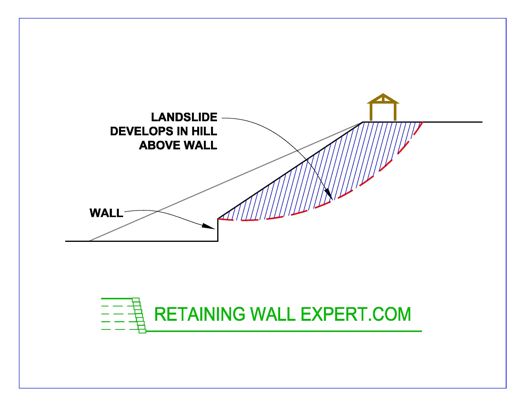

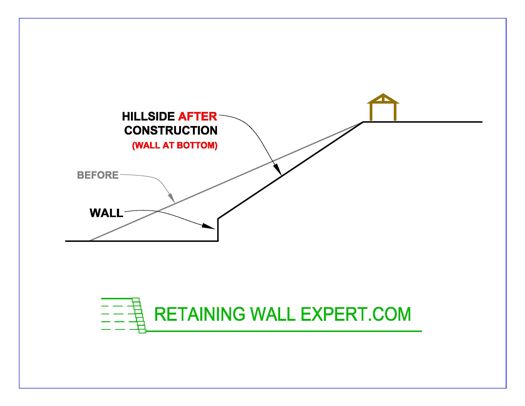

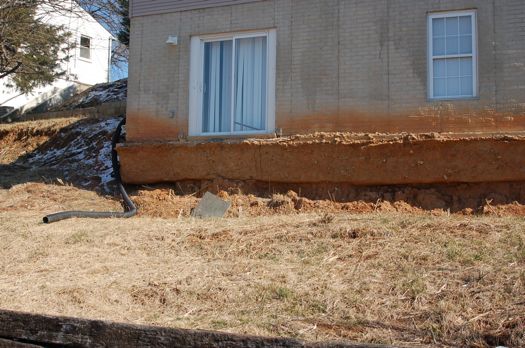

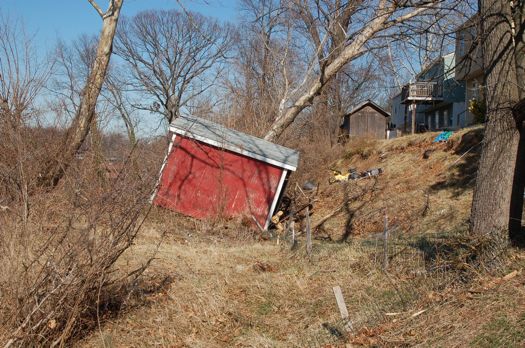

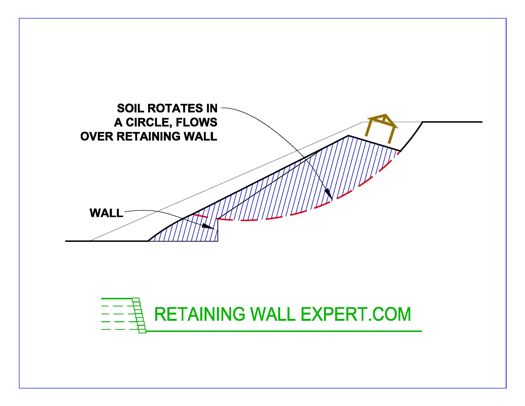

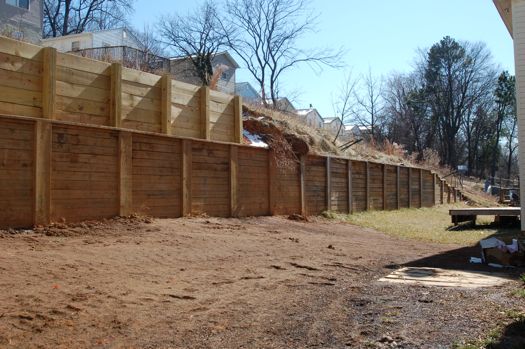

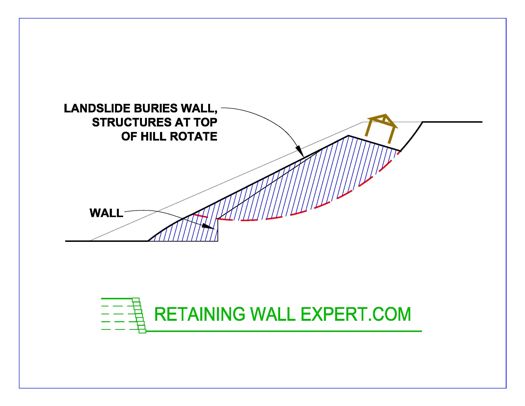

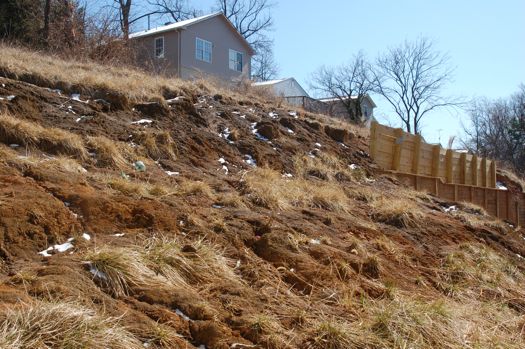

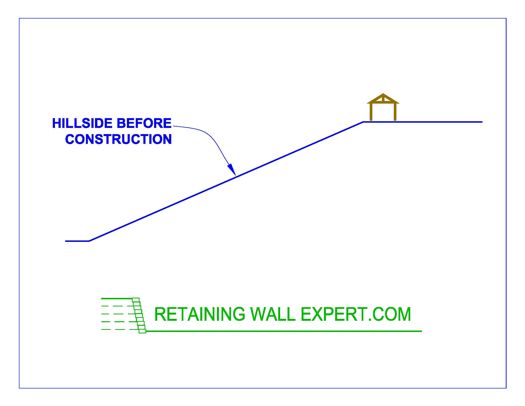

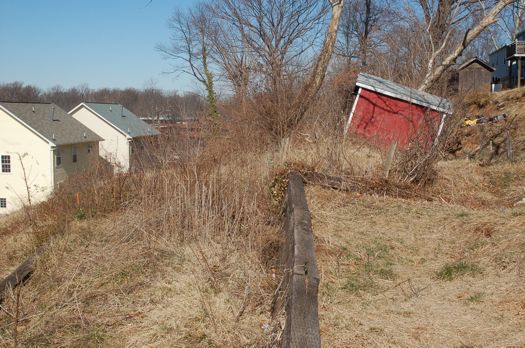

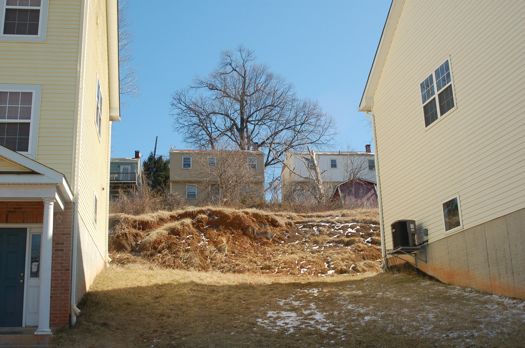

Global Stability is the stability of the hillside ABOVE and BELOW a retaining wall.  By it's very existence, a retaining wall changes the shape of a hillside.  These changes should be addressed by the Engineer and Contractor to determine if the hillside is stable.  Take a look at these sketches, photos and video:
