Stone Strong System

Large Block Systems, Stone Strong
By Doug Blackburn
Dec 17, 2008 - 1:29:52 PM

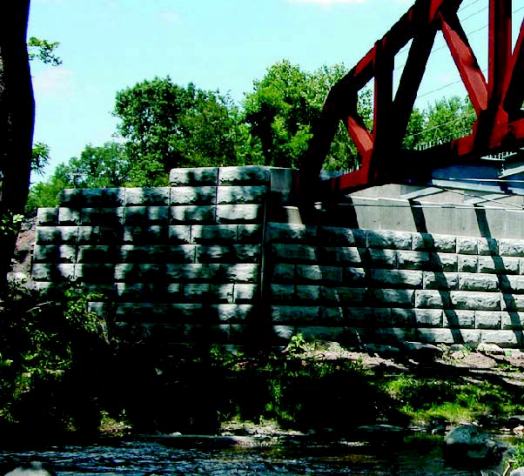

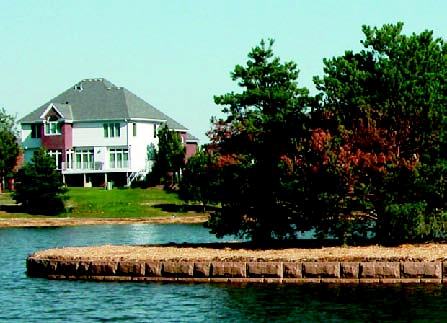

With headquarters in Lincoln, Nebraska USA and a fast-growing international network of licensed dealers, Stone Strong Systems has earned a solid reputation for technical innovation, precision manufacturing, superior design, unmatched quality, and unparalleled customer support. These traits have helped make Stone Strong Systems the ideal solution for many diverse projects, from shoreline protection and erosion control applications to the most challenging retaining wall installations.

Attractive, affordable, durable, and versatile! The massive size and scale of Stone Strong blocks makes them ideal for use in largescale applications – highway, railroad, commercial and waterways to name a few – providing both an attractive and structurallysound solution for your project.  Stone Strong’s main block boasts a 24 square foot face that measures 3 feet by 8 feet, making it the largest precast retaining wall block available on the market today.  The web design of the block maximizes the square footage of the block with minimal concrete used. Stone Strong blocks are engineered both structurally and geotechnically.  The blocks are manufactured to product specifications to assure that the units are uniform in weight, dimensional tolerances and strength, unlike other brands returned concrete is never used.

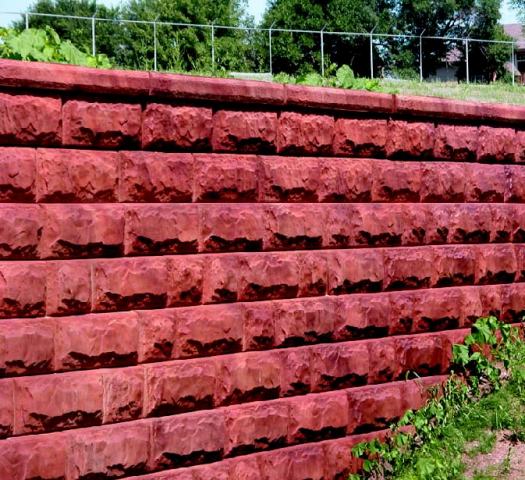

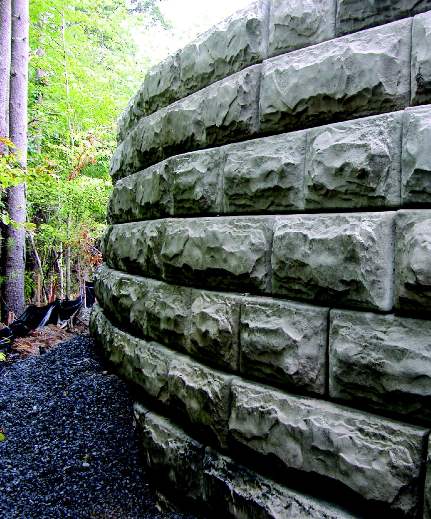

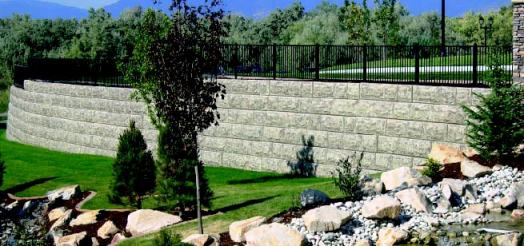

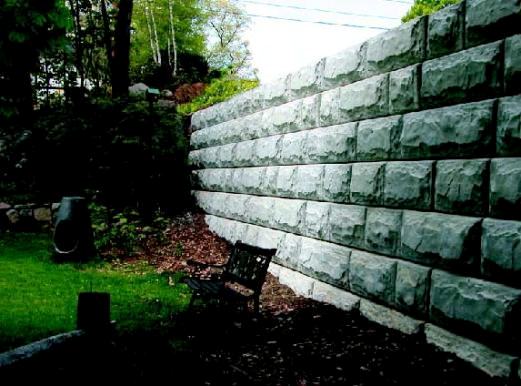

This true gravity wall system can reach heights of 12-15 feet without the use of geogrid or other mechanical tiebacks eliminating future conflicts with utilities.  Stone Strong walls are designed to meet the height requirements of large retaining walls and with proper engineering may go as high as 40 feet.  Stone Strong blocks feature a void in the middle of the block allowing for free draining aggregate inside the wall creating an internal drainage system. The aggregate infill also provides interlocking strength creating a continuous mass.  Additional aggregate backfill material is not required behind the blocks due to this internal drainage system, saving considerable time in installation and excavating costs.

The Stone Strong Line:

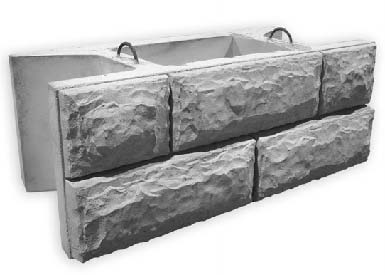

24SF Block


Dimensions: 44”Lx96”Wx36”H

Block Wt. = 6,000 lbs

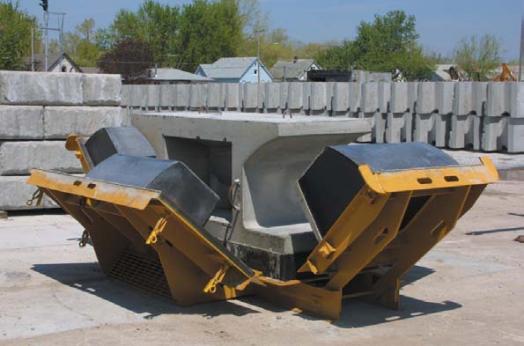

Form Wt. = 4,600 lbs

Concrete Volume = 1.5 cu. yds.

Rock In-fill for installation ~ 1.7 cu. yds. (equivalent to 2.3 tons)





24SF Top Block


Dimensions: 44”Lx96”Wx36”H

Block Wt. = 5,400 lbs

Form Wt. = 4,930 lbs

Concrete Volume = 1.349 cu. yds.

Rock In-fill for installation ~ 1.5 cu. yds.

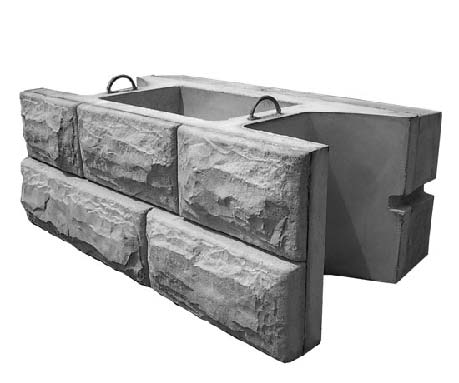

24SF Mass Extender Block


Dimensions: 56”Lx96”Wx36”H

Block Wt. = 10,000 lbs

Form Wt. = 5,119 lbs

Concrete Volume = 2.5 cu. yds.

Rock In-fill for installation ~ 1.7 cu. yds. (equivalent to 2.3 tons)





6SF Block


Dimensions: 44”Lx48”Wx18”H

Block Wt. = 1,600 lbs

Form Wt. = 1,800 lbs

Concrete Volume = 0.4 cu. yds.

Rock In-fill for installation ~ 0.33 cu. yds.





6SF Top Block


Dimensions: 44”Lx48”Wx18”H

Block Wt. = 1,400 lbs

Form Wt. = 1,955 lbs

Concrete Volume = 0.35 cu. yds.

Rock In-fill for installation ~ 0.31 cu. yds.

End Block


Block Wt. = 1,500 lbs

Form Wt. = 1491lbs

Concrete Volume = 0.375 cu. yds.

Rock In-fill for installation ~ 0 cu. yds.





End Top Block


Block Wt. = 1,412 lbs

Concrete Volume = 0.353 cu. yds.

Rock In-fill for installation ~ 0 cu. yds.





Cap/Step Block


Block Wt. = 1,600 lbs

Form Wt. = 1,425 lbs

Concrete Volume = 0.4 cu. yds.

Rock In-fill for installation ~ 0 cu. yds.





Dual Face Block


Block Wt. = 3,520 lbs

Form Wt. = 2,431 lbs

Concrete Volume = 0.88 cu. yds.

Rock In-fill for installation ~ 0 cu. yds.

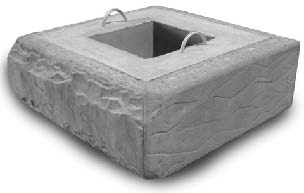

90° Block


Block Wt. = 2,600 lbs

Form Wt. = 2,456 lbs

Concrete Volume = 0.65 cu. yds.

Rock In-fill for installation ~ 0.2 cu. yds.

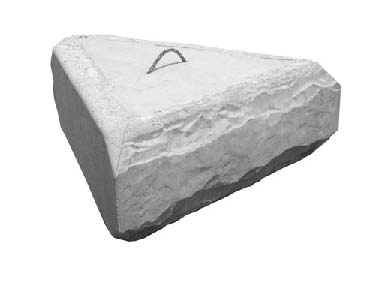

45° Block


Block Wt. = 2,000 lbs

Concrete Volume = .50 cu. yds.

Insert Wt. = 870 lbs

Rock In-fill for installation ~ 0 cu. yds.
